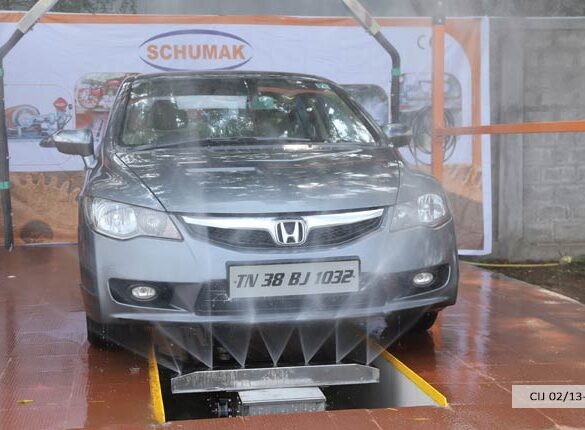

Coimbatore-based Schumak Equipment (India) Pvt. Ltd has introduced a Under Chassis Washer.


• The line voltage to the sensor is 24 DC volts
• Emergency Push Button is provided in case of any Emergency stop
• Mechanical stoppers have been provided in the rails for safety purpose
• UCW reduces time, manpower and cost
• Car is placed stationary and cleaning is done through a moving trolley fitted with 7 nos of SS HT nozzles.
• Water is boosted by a high pressure vertical multi stage pump
• All materials exposed to water are made of stainless steel (SS 304)
• Electronic sensors are provided for sensing the car length
• Two numbers of 6mt hoses are provided for wheel arch cleaning

Pit dimensions (LxWxH): 5500 x 850 x 325mm
No of nozzles: 7 nos
Input supply: 3 Ph, 415 v, 50 Hz
Connected Load: 8 Hp
Power consumption per car: 0.05 units
Time consuming for one cycle: 40 sec (Excluding wheel arch cleaning)
Water consumption per car: 45 – 55 litres (Depends on car length)
Operating pressure: 24 bar
