Karcher Cleaning Systems Pvt Ltd – High Pressure Washer

KarcherMaximum pressure, maximum flow rate

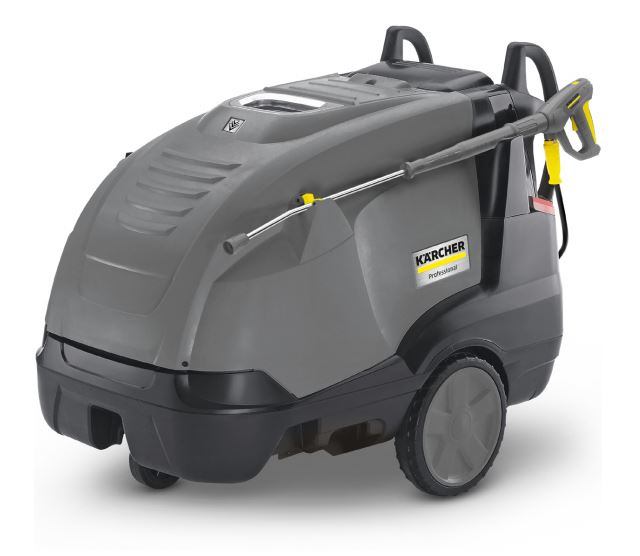

Kärcher’s HDS 10/20-4 M hot water high-pressure cleaner is the most powerful machine in the Kärcher middle class. An innovative eco-efficiency mode as well as a precise cleaning agent dosing unit and the optimised burner engineering reduce environmental pollution, whereas the patented nozzle technology, ceramic piston, turbo blower as well as the excellent pump efficiency ensure the best cleaning results. The operability, which is characterised for example by an intuitive dashboard, LED] displays, as well as a clever mobility concept that makes handling the machine and its transport extremely easy is also optimal.

Features:

  • Maximum efficiency: Highly efficient, tried-and-tested burner technology. Four-pole electric motor with three-piston axial pump. Water-cooled motor for a high level of performance and durability.
  • Operational safety: The large, integrated water fine filter reliably protects the high-pressure pump against small dirt particles. The integrated exhaust gas thermostat switches off the drive motor if the emission temperature exceeds 300°C. The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
  • Storage: Safe and ample storage for protective gear, accessories and cleaning agents.

Applications:

  • Vehicle cleaning, Device and machine cleaning, Workshop cleaning, Service station cleaning, Facade cleaning, Swimming pool cleaning, Cleaning of production facilities, Cleaning during production processes, Cleaning of sports facilities.



Technical Specifications
Current type (Ph/V/Hz) 3/ 40 /50
Flow rate (l/h) 500 – 1000
Working pressure (bar/MPa) 30 – 200 / 3 – 20
Temperature (for supply 12°C) (°C) min. 80 – max. 155
Connection load (kW) 7.8
Consumption of heating oil or gas at full load (kg/h) 6.4
Power cable (m) 5
Fuel tank (l) 25
Weight (with accessories) (kg) 167.3
Weight incl. packaging (kg) 179.3
Dimensions (L × W × H) (mm) 1330 x 750 x 1060
