IP Cleaning’s heavy-duty industrial vacuum cleaner

High airflow performance for quick vacuuming of large quantities of light dust

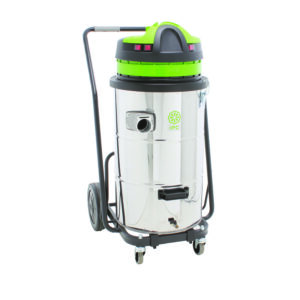

IP CleaningA vacuum cleaner with multi-filtration stages, (PCB pre-filter, star-shaped cloth filter, polyester cartridge), IP Cleaning India’s PLANET 775 AF allows increased filter efficiency, especially when a mixture of materials is vacuumed.

The waste material in heavy duty application comprises mainly of light dust, medium quantity of fine dust and the other remaining debris. The multi-stage filtration efficiently reduces clogging of the filters and the manual shaker makes for easy filter cleaning. The tank release system optimises easy and fast emptying of debris.

These machines are designed for specific industrial sectors, ideal for collecting production waste in heavy duty applications.

Features:

  • Ideal for continuous and heavy-duty applications
  • Tank release system for easy and fast emptying
  • Easy to move, thanks to the structure with handle and non-slip wheels
  • Manual shaker for easy filter cleaning
  • Solid and robust metal carriage
  • Vacuum control for filter overpressure: constant top filtering efficiency
  • Industrial framework with AISI 304 with detachable tank
  • Vacuum relief valve and filtration level indicator
  • PCB pre-filter and additional cartridge
  • Star-shaped filter
  • Long lasting turbine with perfect performance
  • Also available with ATEX certification

Applications:

Used in 24 hour dust extraction from automatic machineries, concrete, gypsum, marble suction, paper, wood shavings, fabrics, plastic suction.

Technical Specification Unit PLANET 775 AF
Usage   DRY
Number of phases   3 phases
Voltage V 400/50
No. and type of turbine   1 single stage
Power W 7500
Water lift mmH2O 2700
Airflow m3/h 700
Tank Capacity l 100
Diameter of inlet mm 70
Filtering surface cm2 35000
Sound Pressure Level dB(A) 76
Dimensions (LxWxH) mm 670x1400x1960
Weight Kg 265
